Multilayer Board
Multilayer FR4 boards from 4 layers up to 40+, with controlled impedance and heavy-copper options.
Last updated
Multilayer Board samples
-

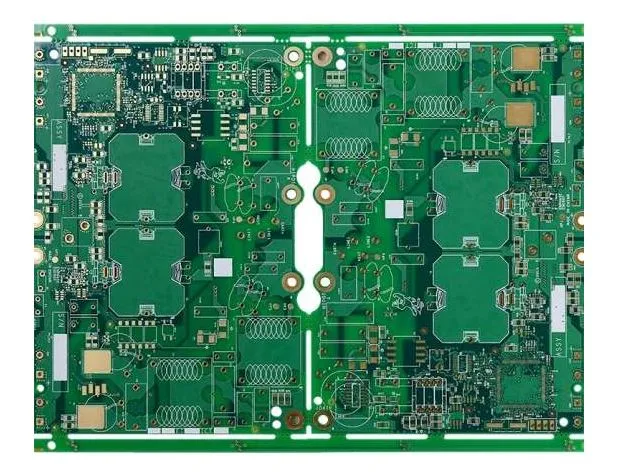

8L lead-free HASL PCB, thickness 1.6 mm, 3 oz
-

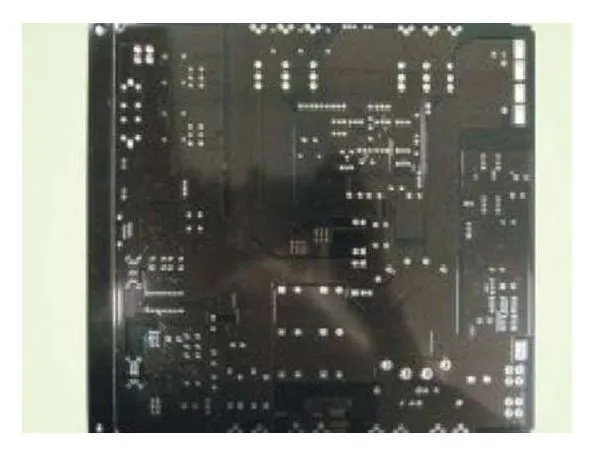

6L FR4 immersion gold board, thickness 1.6 mm
About Multilayer Board
Multilayer boards stack three or more copper layers with core and prepreg between them. Dedicated ground and power planes cut noise and make controlled impedance possible, and the extra routing layers let complex circuits fit on a smaller board.
Our partner factories build multilayer boards from 4 to more than 40 layers, with copper up to 10 oz, blind and buried vias, and finishes including lead-free HASL and immersion gold.
Typical applications
- Industrial controllers
- Telecom and networking equipment
- Computers and servers
- Automotive electronics
- Burn-in and test boards
Common questions
How many layers does my board need?
It depends on routing density, BGA pin count and signal-integrity needs. Many designs use 4 or 6 layers, while high-speed and large-BGA boards often need 8 or more. Send your design and we can help review the stack-up.
Can you control impedance on multilayer boards?
Yes. Give us the target impedance and the traces or layers it applies to, and the stack-up is adjusted to meet it.
Have a board to build?
Send us your Gerber files and requirements. Our team will review your specifications and get back to you with a quote.
